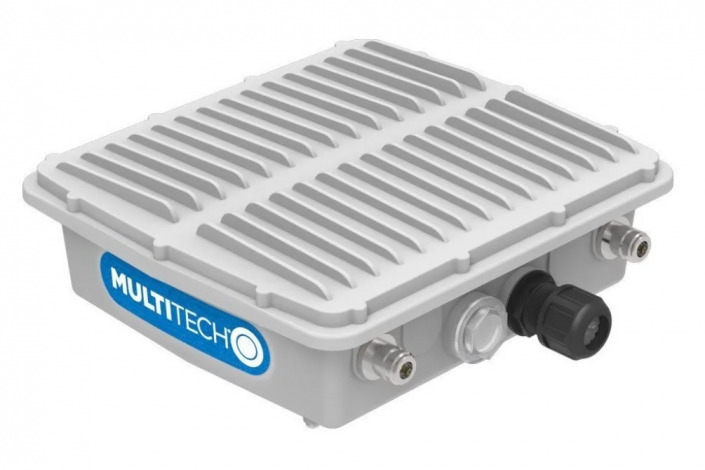

This guide will instruct you to use Multitech Conduit IP67 Base Station in Easy LoRaWAN Cloud.

Step 1: To read the Hardware Guide and connect all parts of the gateway

  • The antenna MUST be connected to the gateway BEFORE power on. Otherwise, you may damage the sensitivity of LoRaWAN chip.

Step 2: To read Chapter 2 – Using the Wizard to Configure Your Device of the Manual:

  • To setup the Network and Cellular (Optional)
  • To make sure the gateway can access Internet

Step 3: To read Chapter 4 – LoRaWAN of the Manual:

  • In the left menu, click LoRaWAN®
  • Under LoRa mode, select PACKET FORWARDER

Step 4: Under LoRa Packet Forwarder Configuration, to set the following settings:

  • Network: Manual
  • Channel Plan: To select a supported frequency plan here
  • Server Address: lorawanserver.easylorawan.com
  • Upstream Port: Check the port in the supported frequency plans
  • Downstream Port: Check the port in the supported frequency plans
  • Click Submit, and then Save and Appy in the left menu.

Next steps:

  • You can continue with the Quickstart guides here

Done.
